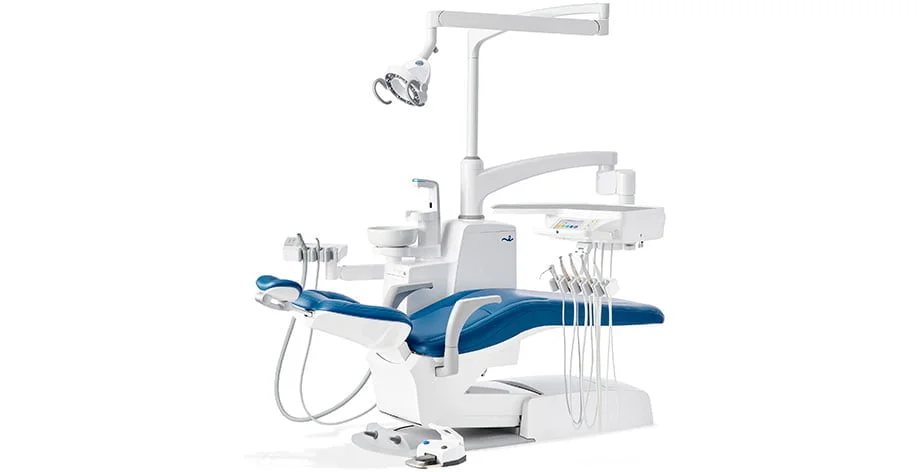

Belmont Eurus S1 ‘CM Holder type’ (E)

Belmont Eurus S1 ‘CM Holder type’ (E) is a unique unit that can fit into narrow clinics easily. Its modern design allows dentists and their assistants to work simultaneously without restricting each other’s movements.

The E version of this unit includes an LCD monitor that makes it easy to read and input settings due to the touch option. Pre-set micromotor settings also allow the device to work efficiently.

Synchronized movement of the backrest also enables shockless movement for the patient. This device is a combination of ergonomic design and modern features.

Chair Mounted Over-Patient Holder & Continental Rod Type (A and E)

• with 921 unit-mounted operating light
• Optional Right/Left Handed Installation

Chair section features include:

The Eurus S1 has a maximum safe working patient weight of 200kg (IEC60601-1 / ISO 6875)
Twin-articulating headrest with more precise positioning and lighter control adjustment
2 pre-set positions, last position memory (LP) & auto-return plus 6 operator configurations
Swing-out armrest to 90 or 135 degrees
Integrated service centre
Synchronised axis backrest & seat movement
Integrated foot stalks for chair control
Seamless upholstery as standard

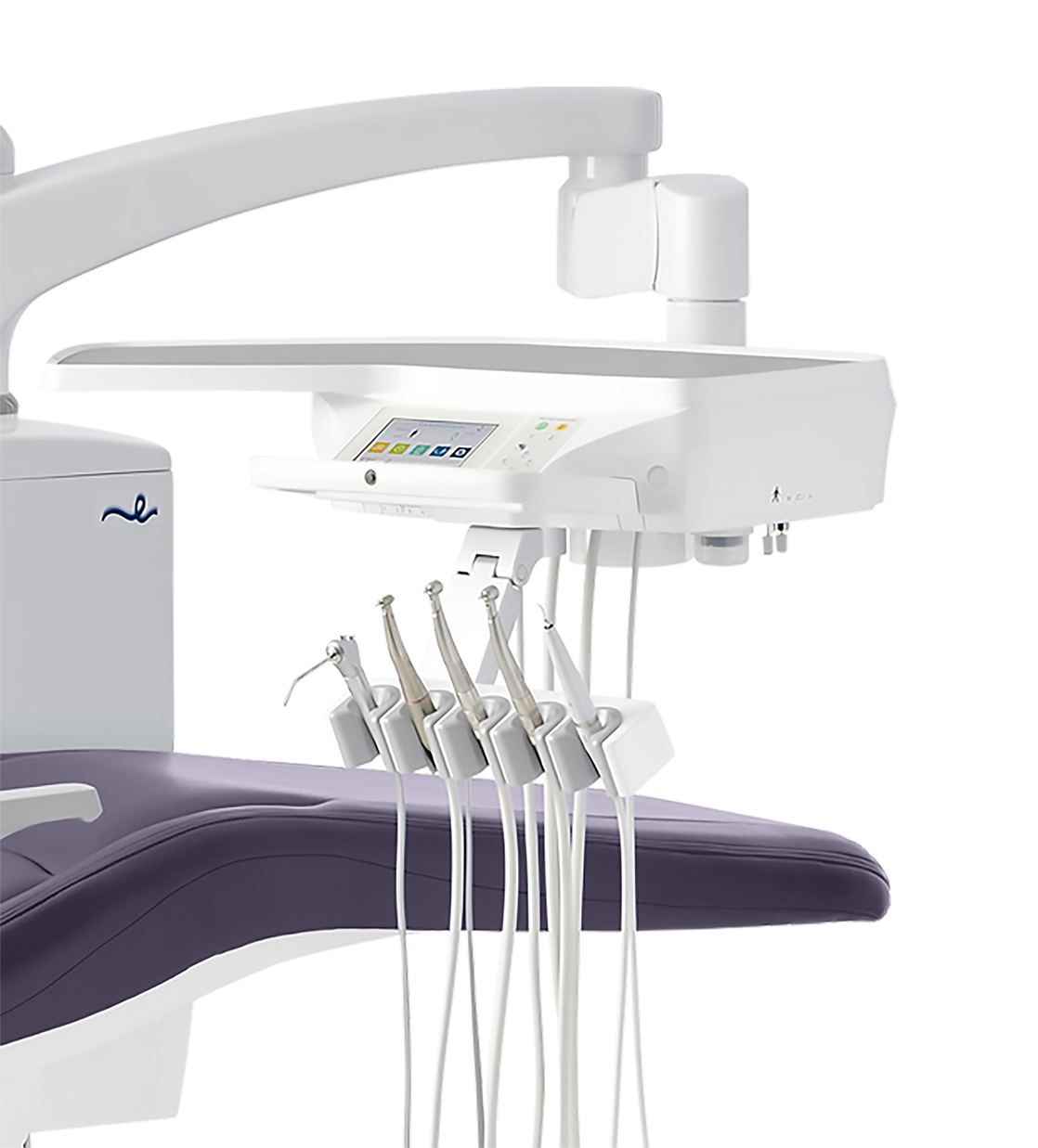

Unit section (A) Doctor side: features include:

Autoclavable unit handle cover, handpiece holders
unit tray silicon mat, handpiece rest (Rod Type)
Easy-clean membrane switch panel
Doctor handpiece control touch screen with water
low warning indicator
3-way autoclavable syringe
3 Fibre-optic & 1 non-optic handpiece outlets with
individual air & water control
First priority handpiece selection
Handpiece water line flush-out system
Handpiece oil mist collector
Electronic foot control for accurate turbine speed control and integrated lifting handle

‘E’ version additional features include:

Bien-Air MX2 fibre optic micro motor
Pre-set micro motor & torque control with auto-reverse, Endo control and LCD display, with optional up-grade to WaveOne endodontic system

Assistant side (A and E) features include:

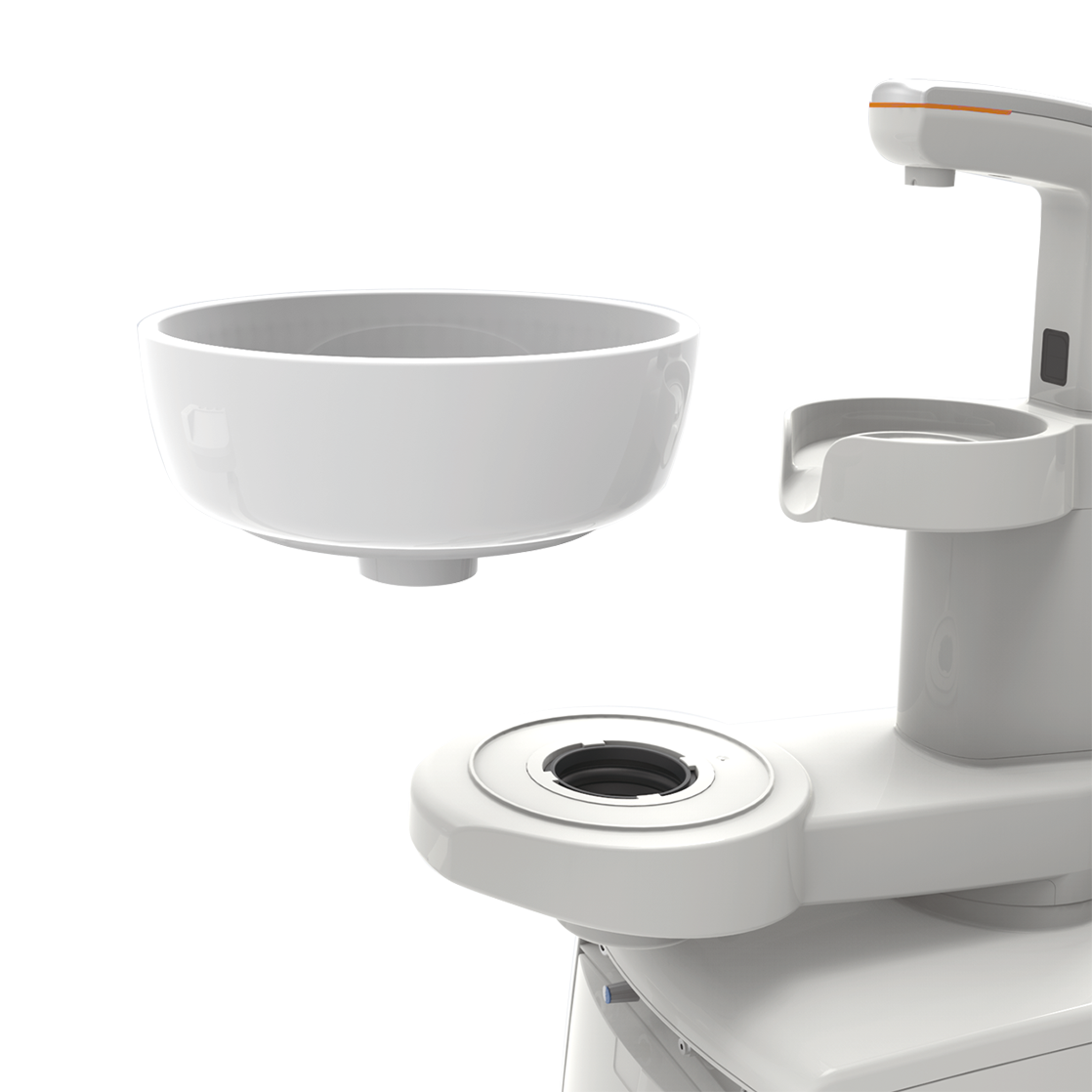

Easily-detached porcelain bowl with
180 degree rotation

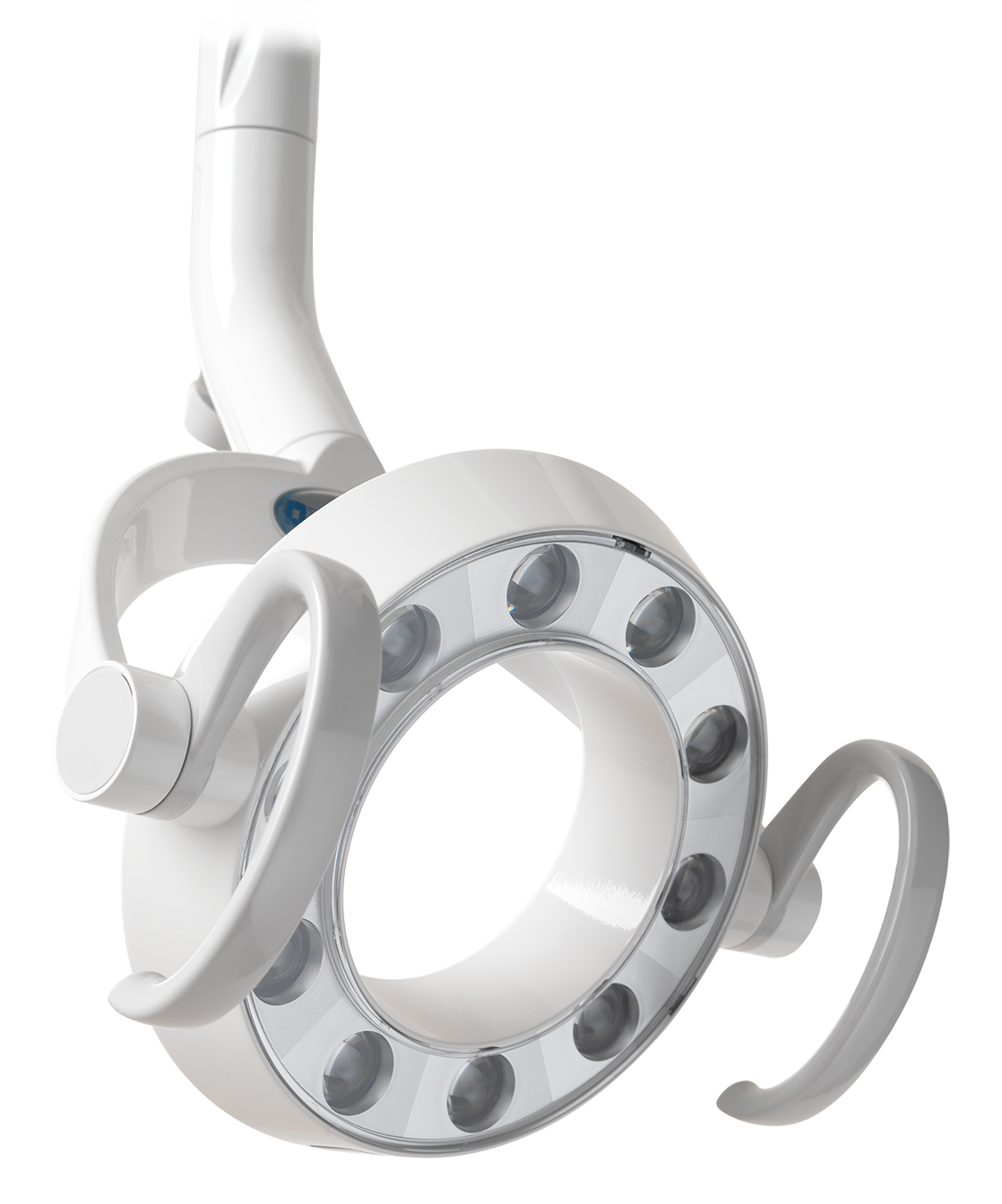

921 LED dental light with detachable autoclavable handles
Assistant console with:
Console arm safety lockout if arm is lifted
Easy-clean membrane chair pre-set controls
Detachable HVE & saliva ejector tubings
HVE with ball joint for greater ease of operation
Automatic bowl-flush & cup filler
Bottled water system with water low warning
LED on cup filler spout casing
Durr spittoon valve
