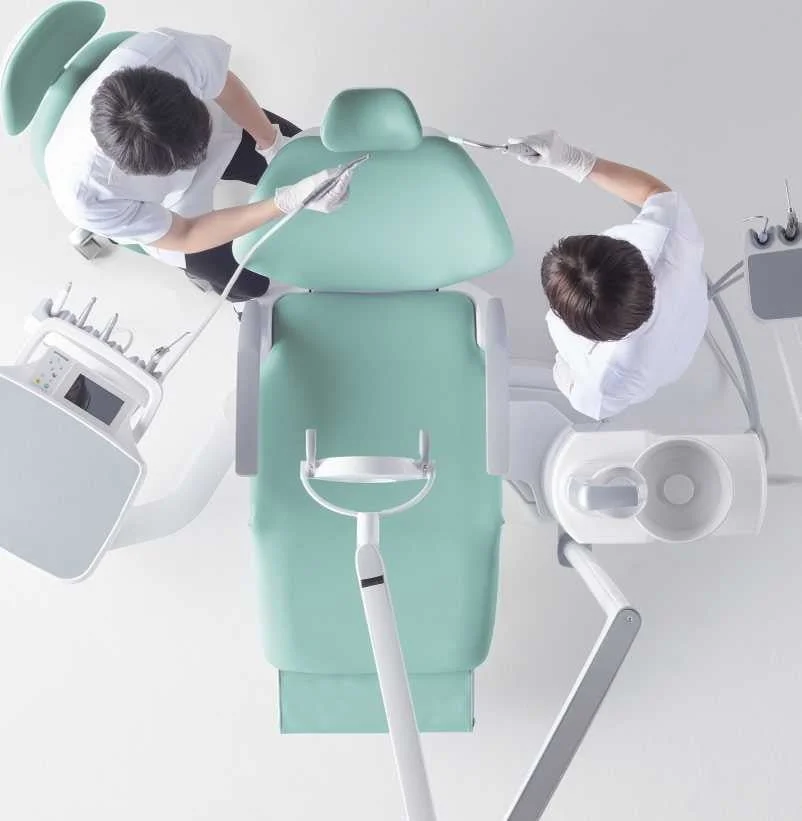

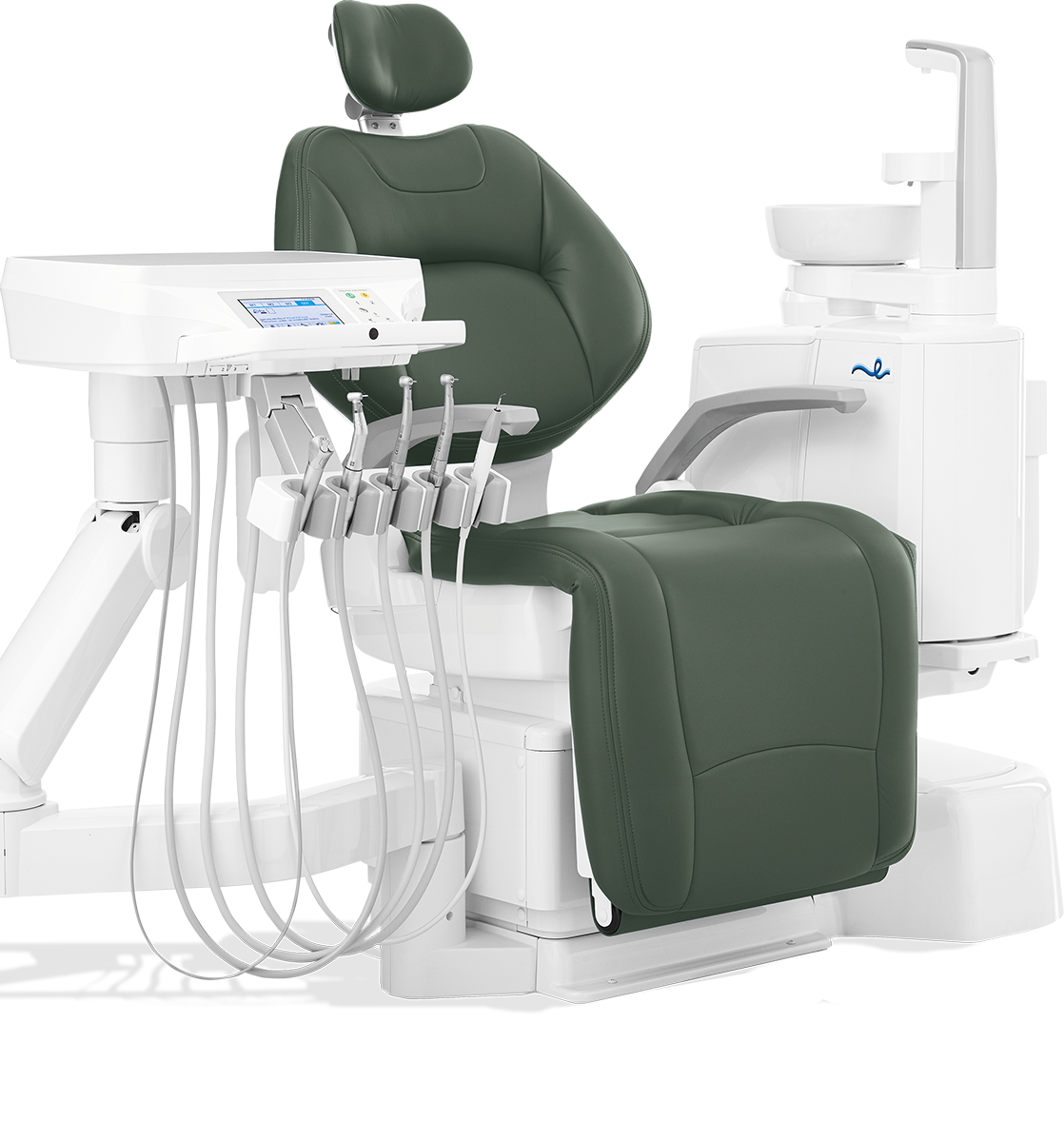

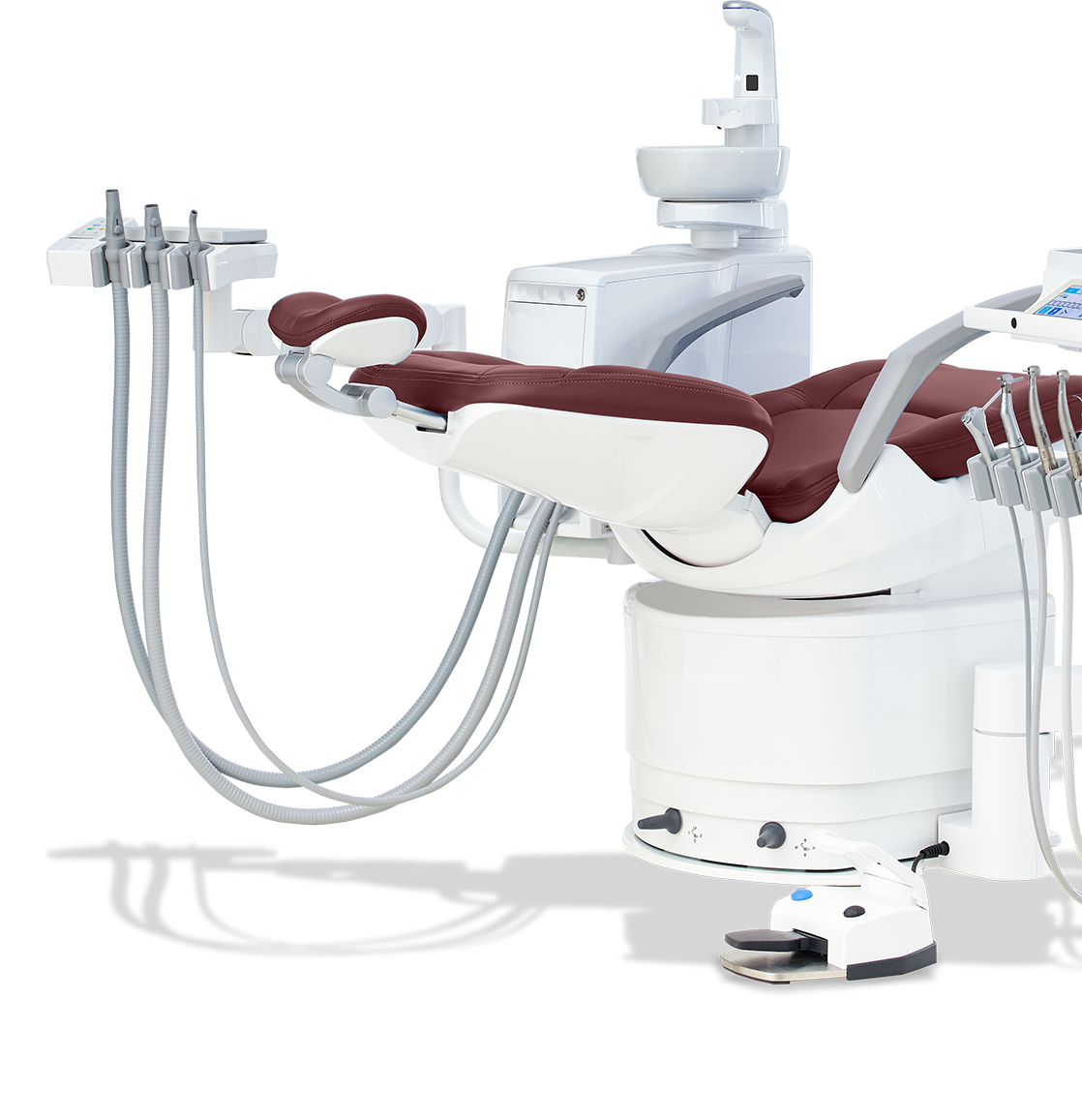

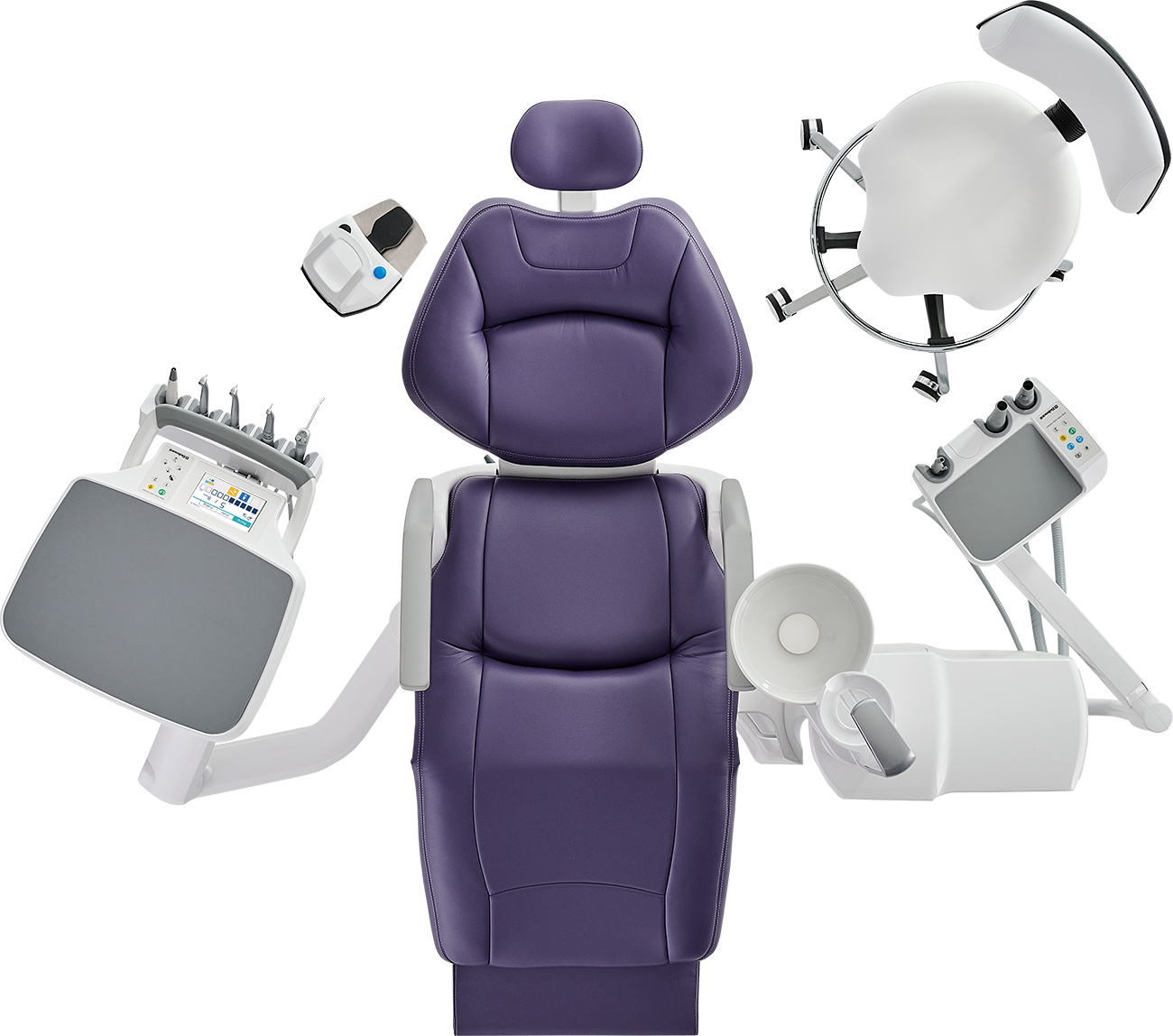

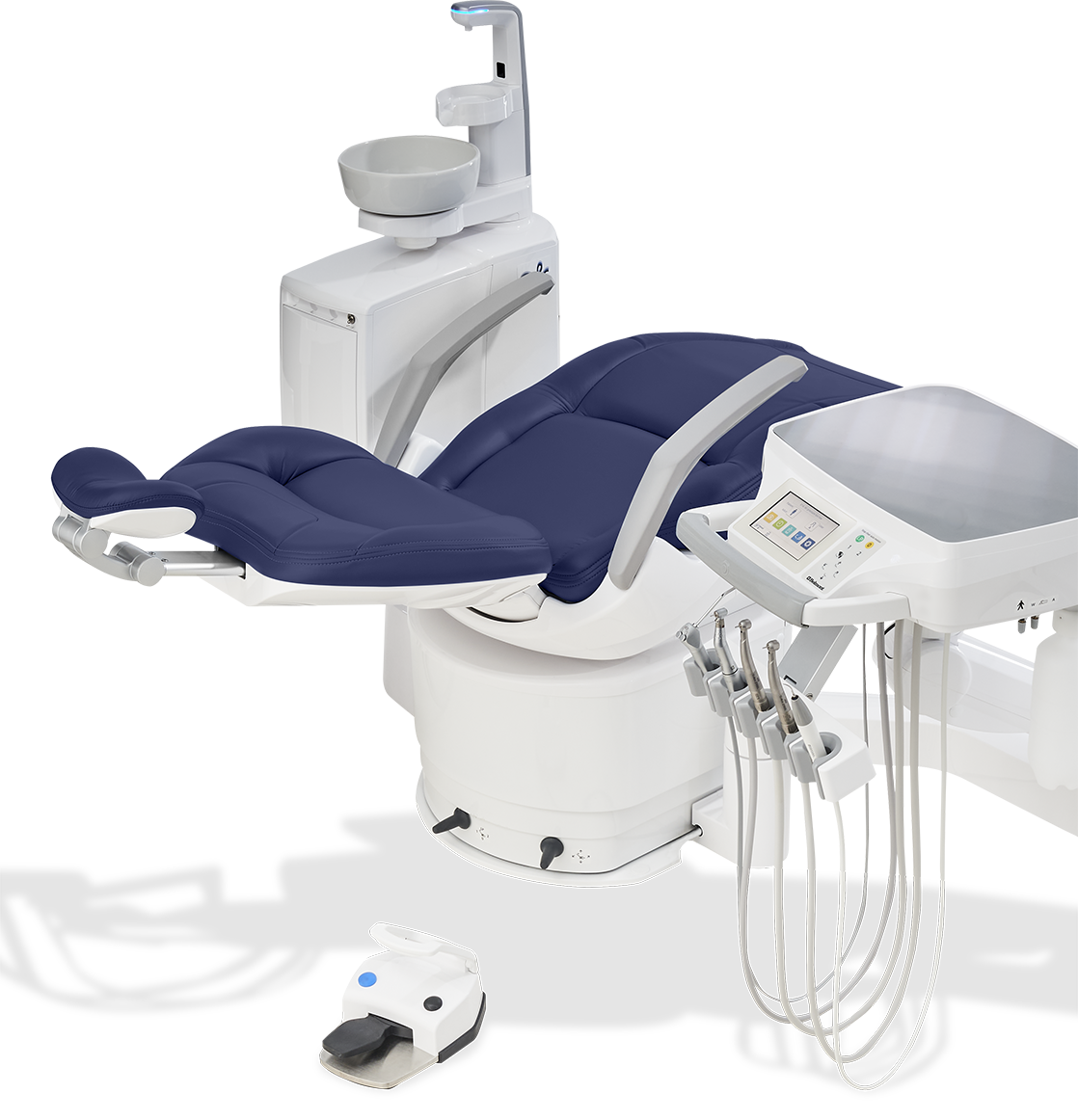

Belmont EURUS S6 Surgery System (E)

Belmont Eurus S6 Surgery System (E) is a one-of-a-kind unit that helps you deliver excellent performance. It can support a patient of up to 165 kg with ease. The system can operate on six different settings, depending on your preference.

You may also return the patient to the lying position easily with the last memory setting. A 180° foldable armrest allows easy frontal and side access to patients.

The chair comes with a higher backrest cushion to offer good lumbar support and comfort to patients. An additional feature of this model is its torque control with an auto-reverse option.

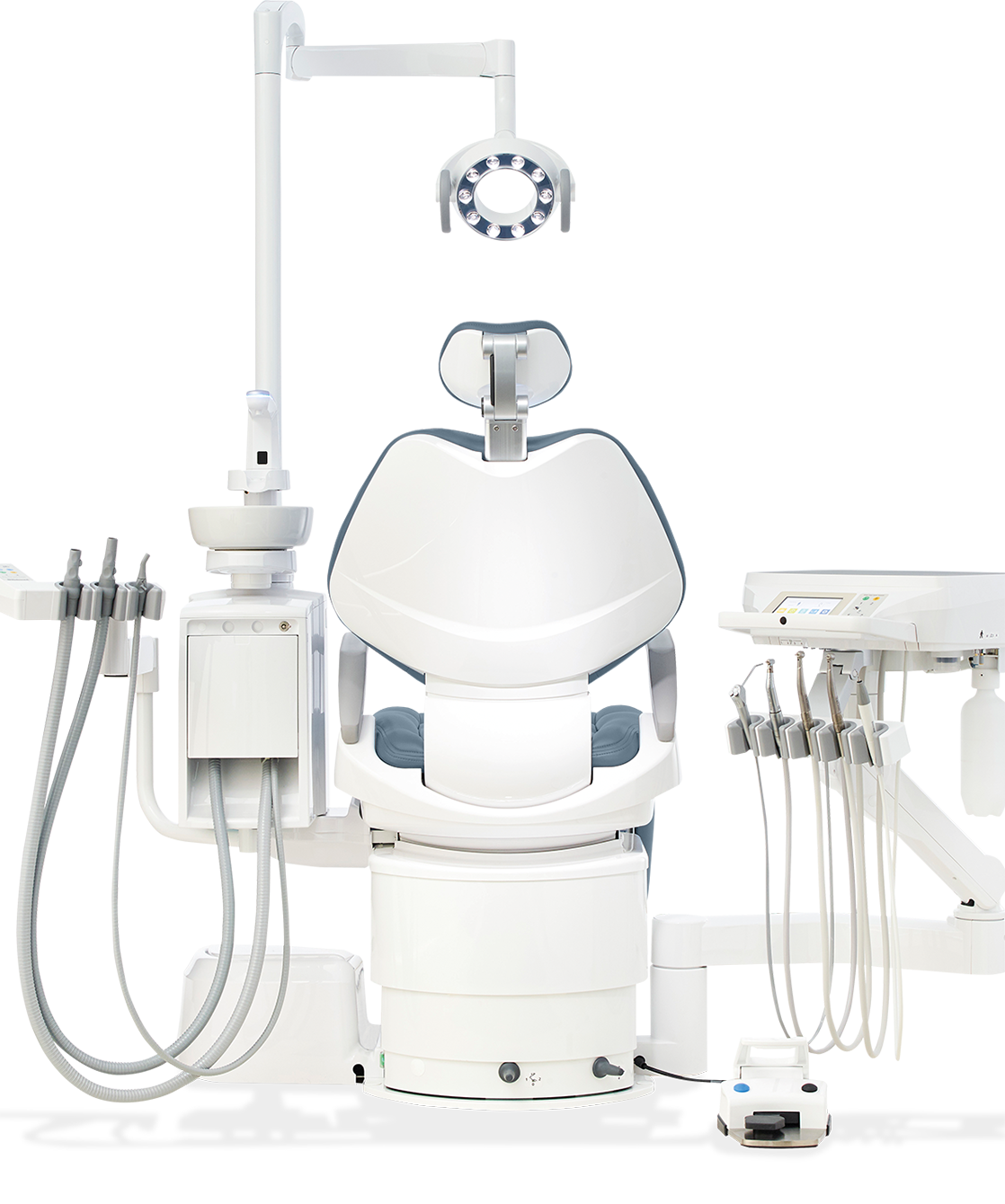

Surgery System (A and E) with 921 unit-mounted operating light

Belmont EURUS S6 Surgery System (E) Chair features include:

Maximum safe working patient weight of 165kg
(IEC60601-1 / ISO 6875)

Twin-articulating headrest with more precise
positioning and lighter control adjustment
2 pre-set positions, last position memory (LP) &
auto-return plus 6 operator configurations

Chair armrest folds away 180 degrees towards the
back of the chair for easy infirm patient entry
Synchronised axis backrest & seat movement
Taller backrest cushion with additional lumbar
support for greater patient comfort

Integrated foot stalks for chair control

Integrated service centre

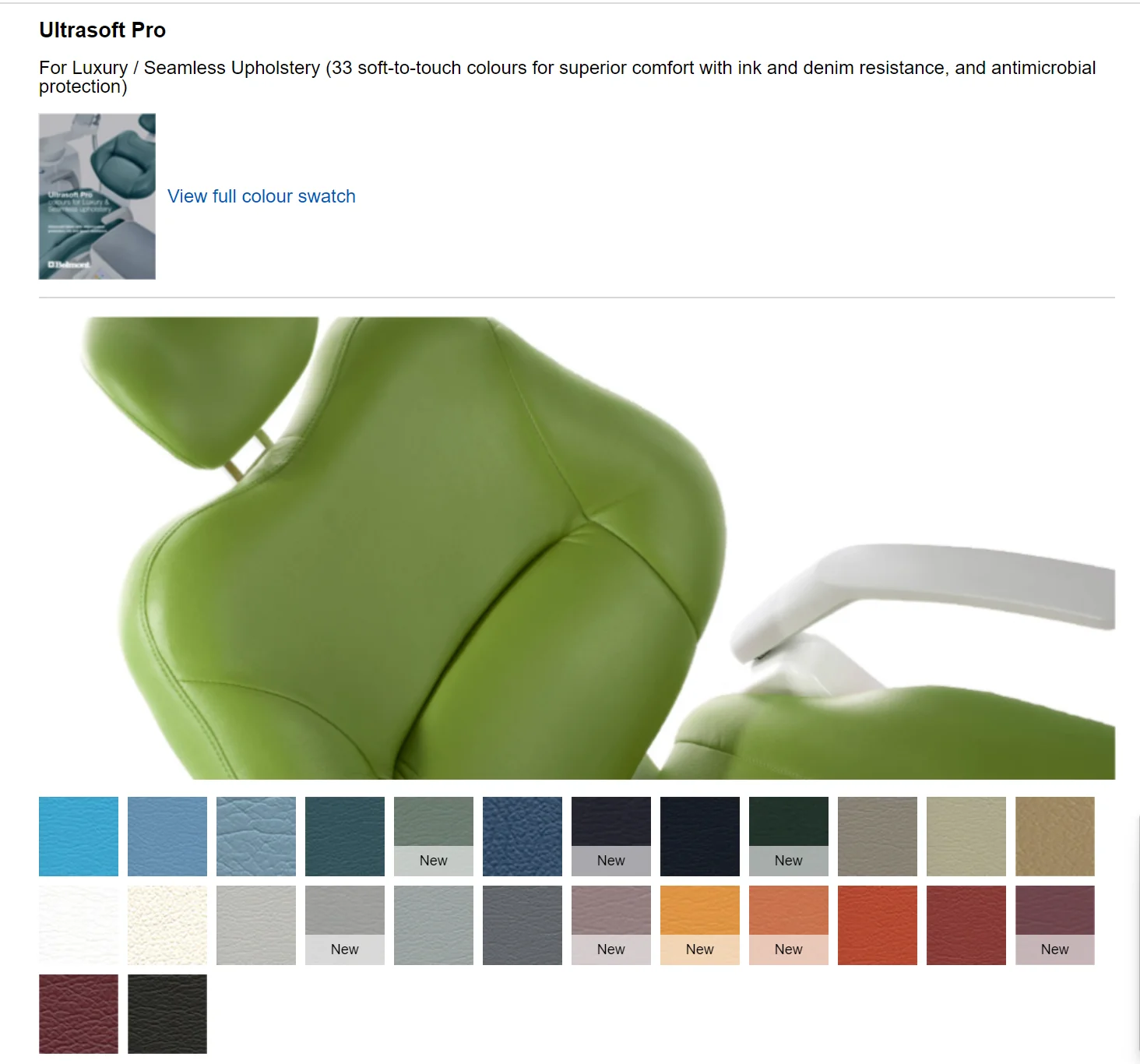

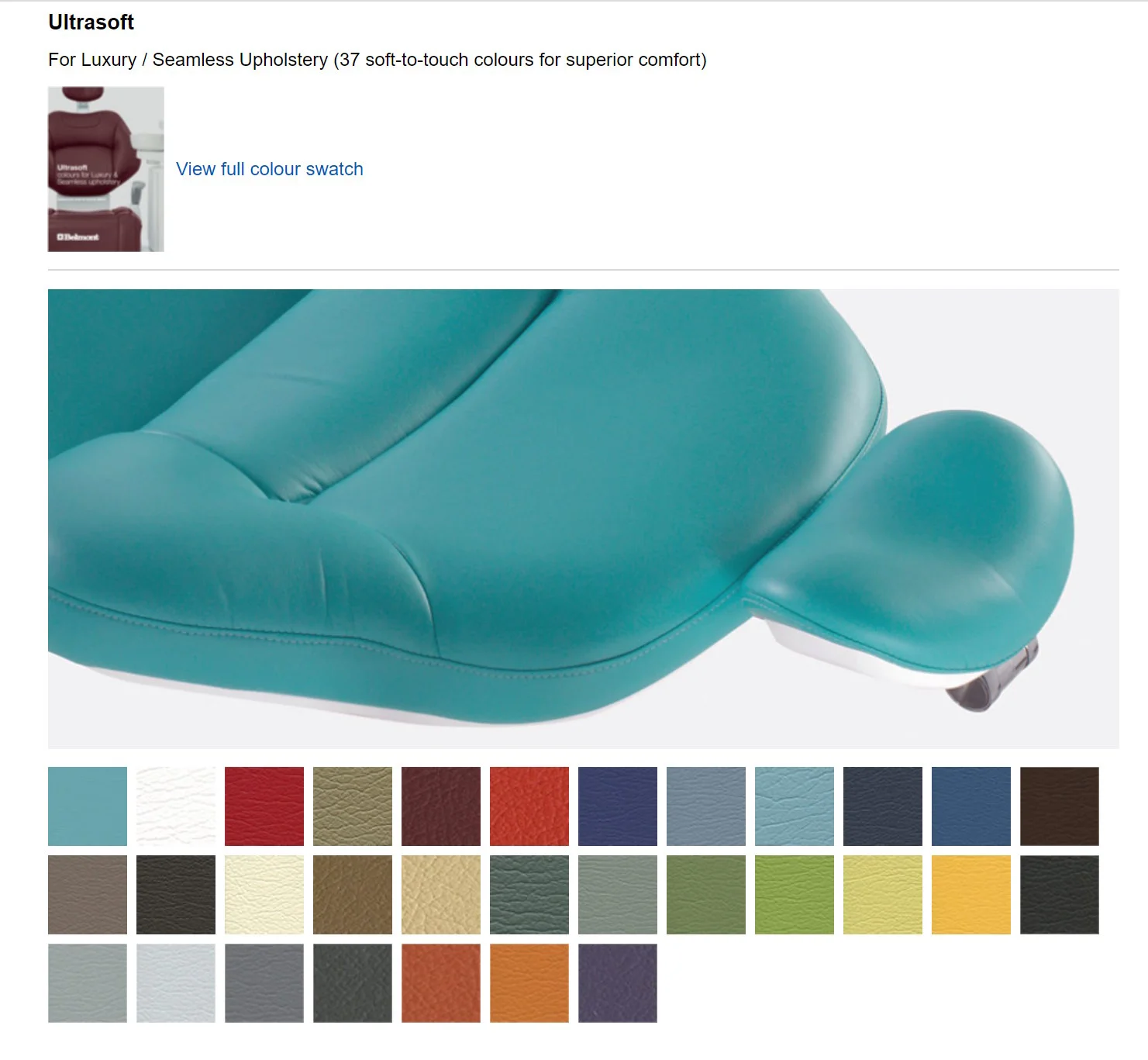

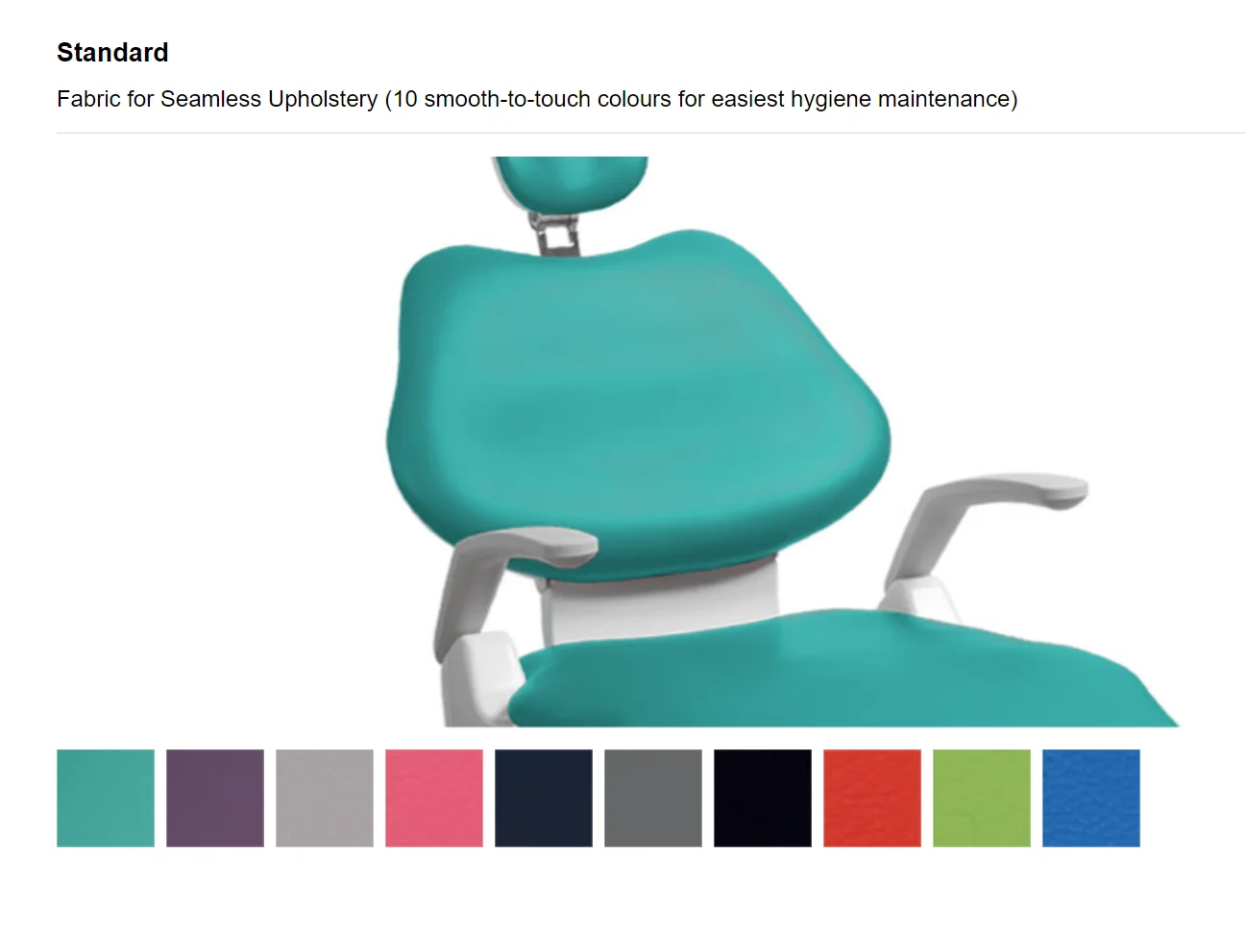

Seamless upholstery as standard

Unit section (A) Doctor side: features include:

Below-the-patient swing-arm delivery system

Height adjustable unit tray with pneumatic release
and lock button

Powerful intuitive touch-screen with advanced
instrument control, plus WaveOne technology
Autoclavable unit handle cover, handpiece holders
unit tray silicon mat

Easy-clean membrane switch panel
3-way autoclavable syringe

• Fibre-optic & 1 non-optic handpiece outlets with
  individual air & water control

First priority handpiece selection

Handpiece water line flush-out system

Handpiece oil mist collector

Wireless electronic foot control for accurate
instrument operation with integrated lifting handle
Bottle water system

Unit section (E) Doctor side additional
features include:

Bien-Air MX2 fibre optic micro motor
Pre-set micro motor & torque control with
auto-reverse, Endo control and LCD display, with
optional up-grade to WaveOne endodontic system

Assistant side (A and E)

features include:

Easily-detached porcelain bowl with
90 degree rotation

Cuspidor with 90 degree rotation away from the
chair for accessing the patient from the left side
921 LED dental light with detachable autoclavable
handles

Assistant console with:

Console arm safety lockout if arm is lifted
Easy-clean membrane chair pre-set controls
Detachable HVE & saliva ejector tubings

• x HVE with ball joint for greater ease of operation
  Automatic bowl-flush & cup filler

Chair movement lock indicators located on the
cup filler spout and touch-screen

Durr spittoon valve
